IMT100 Electric Cylinder

IMT100 Electric Cylinder

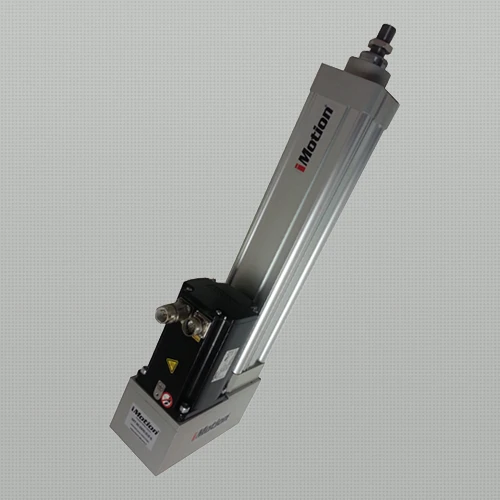

It is produced in ISO1552 pneumatic Cylinder dimensions as standard, and many different stepper or Servo motors can be connected according to the desired speed and force.

Fasteners used in pneumatic cylinders can be used in Electric Cylinder.

Standard channel type sensors can be used.

Products can be produced in different pitches specific to your application.

Create Product

Prepare an electric cylinder order with the sensitivity and power options specific to your machine and your needs.
 Cylinder Dimension100
 Available Screw Size5 - 10 - 32
Max. Standart Stroke1200 mm
 Accelerationup to 8 m/s²
 Repeatability<0.03 mm
 Protection ClassIP54 - IP65 (Option)
 Mounting MethodInline or Parallel
Certificates2006/42/EC Machine Directive
 Screw Pitch 32x532x10
Dynamic Load Capacity 14100 N 33400 N
Static Load Capacity 42700 N 70080 N
Max. Speed 250 mm/sn 500 mm/sn

 Nominal Force 12000 N 12000 N

* Speed values ​​are given according to 3000 rpm.
* Force and speed may vary depending on the engine used.

*Stork varies depending on the selected engine power.

**X,Y,Z,K dimensions may vary depending on the Motor to be used.

Ball Screw Dimension

A

B

C

ØD

ØE

F

G

I

H

M

N

K

O

X

Y

Z

32x5

115

38

38

80

50

M27x2

54

37,5

22,5

112

89

**

M10

**

**

**

32x10

152

38

38

80

50

M27x2

54

37,5

22,5

112

89

**

M10

**

**

**

You can download the Sample Applications 3D (stl) files from the link below…
