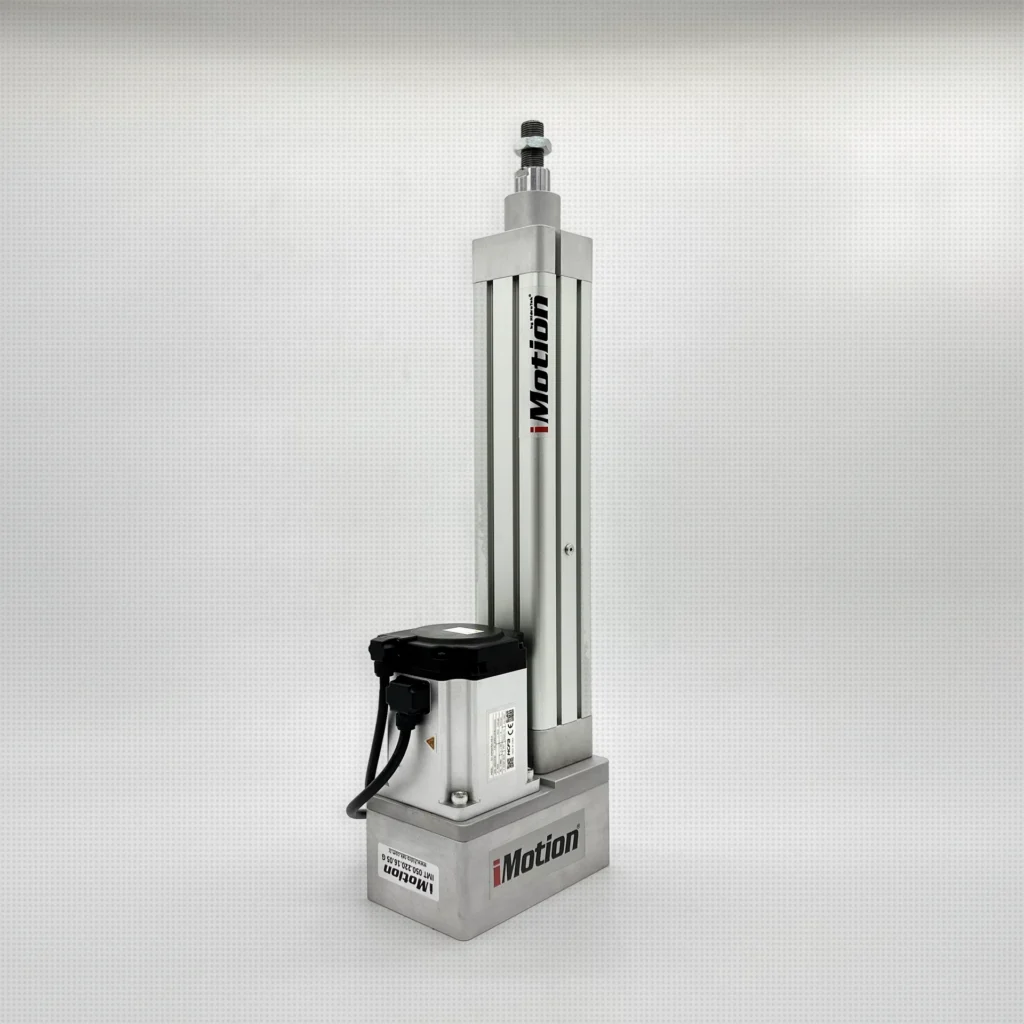

IMT50 Electric Cylinder

IMT50 Electric Cylinder

It is produced in ISO1552 pneumatic Cylinder dimensions as standard, and many different stepper or Servo motors can be connected according to the desired speed and force.

Fasteners used in pneumatic cylinders can be used in Electric Cylinder.

Standard channel type sensors can be used.

Products can be produced in different pitches specific to your application.

Technical data

Create Product

Prepare an electric cylinder order with the sensitivity and power options specific to your machine and your needs.
Create Product
 Cylinder Dimension50
 Avaiable Screw Size2 - 5 - 10
Max. Standart Stroke1000 mm
 Accelerationup to 10 m/ s²
 Repeatability<0.03 mm
 Protection ClassIP54 - IP65 (Option)
 Mounting MethodInline or Parallel
Certificates2006/42/EC Machine Directive
 Screw Pitch 16x216x516x10
Dynamic Load Capacity 3300 N 8100 N 10700 N
Static Load Capacity 6200 N 12400 N 17000 N
Max. Speed 100 mm/sn 250 mm/sn 500 mm/sn
Nominal Force 2750 N 2750 N 2750 N

* Speed values ​​are given according to 3000 rpm.
* Force and speed may vary depending on the engine used.

*Stroke varies depending on the selected engine power.

**X,Y,Z,K dimensions may vary depending on the Motor to be used.
