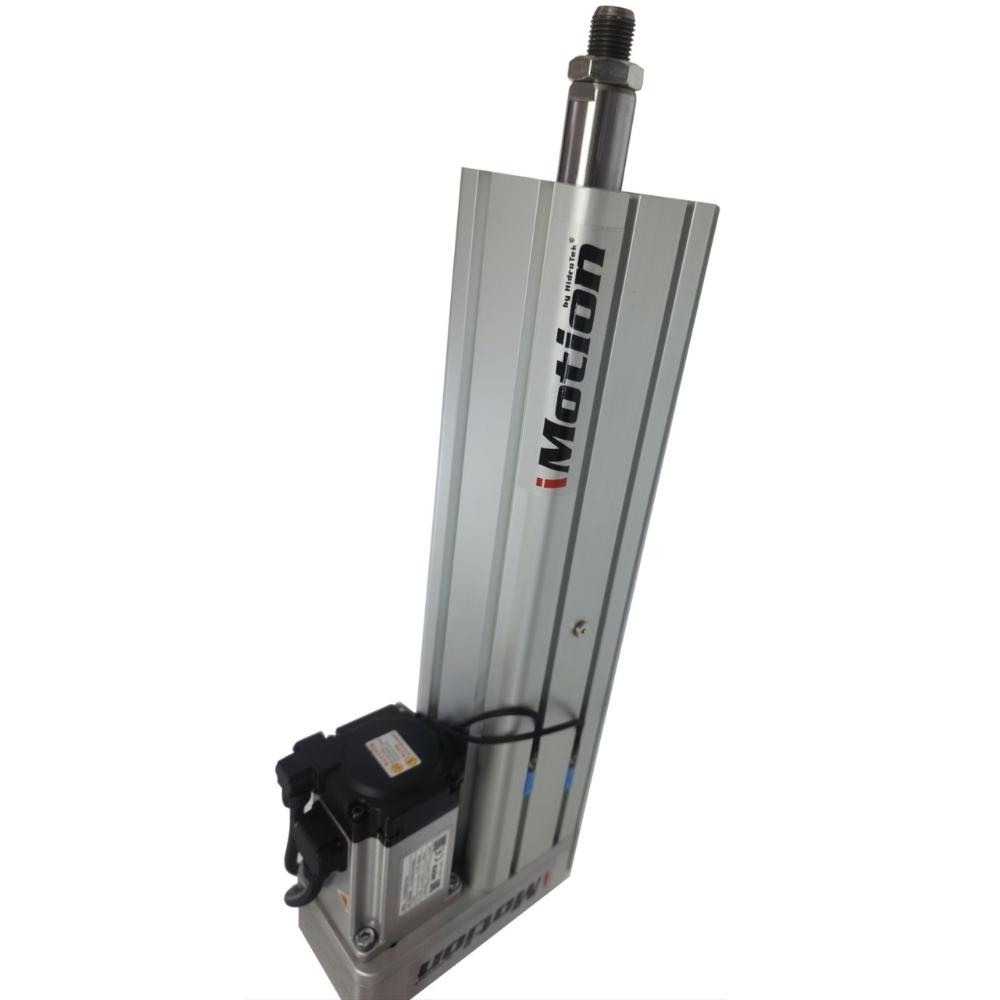

IMTL63 Electric Cylinder
IMTL63 Electric Cylinder
It is produced in ISO1552 pneumatic Cylinder dimensions as standard, and many different stepper or Servo motors can be connected according to the desired speed and force.
Fasteners used in pneumatic cylinders can be used in Electric Cylinder.
Standard channel type sensors can be used.
Products can be produced in different pitches specific to your application.
Create Product
Prepare an electric cylinder order with the sensitivity and power options specific to your machine and your needs.
| Cylinder Dimension | 63 |
| Available Screw Size | 5 |
| Max. Standart Stroke | 600 mm |
| Acceleration | up to 12 m/s² |
| Repeatability | <0.03 mm |
| Protection Class | IP54 - IP65 (Option) |
| Mounting Method | Inline or Parallel |
| Certificates | 2006/42/EC Machine Directive |
| Screw Pitch | 16x5 | |
| Dynamic Load Capacity | 8100 N | |
| Static Load Capacity | 12400 N | |
| Max. Speed* | 250 mm/sn | |
| Nominal Force | 2000 N |
* Speed values are given according to 3000 rpm.
* Force and speed may vary depending on the engine used.
A | B | C | D | E | F | G | H | I | J | K | L |
96 | 88 | 11 | 8 | 32 | 32 | 27 | M16x1,5 | 75 | 56,5 | M8 | 80 |
A | B | C | D | E | F | G | H | I | J | K | L | M |
96 | 47 | 11 | 8 | 32 | 32 | 27 | M16x1,5 | 75 | 56,5 | M8 | 163 | 84 |
You can download the Sample Applications 3D (stl) files from the link below…
